- Clicking/cutting die steel is specially designed & developed for Die Cutting, and it can be formed into different shapes according to user's pattern designs.
- Applicable to cut: plywood, insole, sole material, textiles, leather goods, lining fabrics, insulating material, plush, upholstery fabrics, mats, upper leather, cardboard/boxes, rubbers, gaskets, etc.

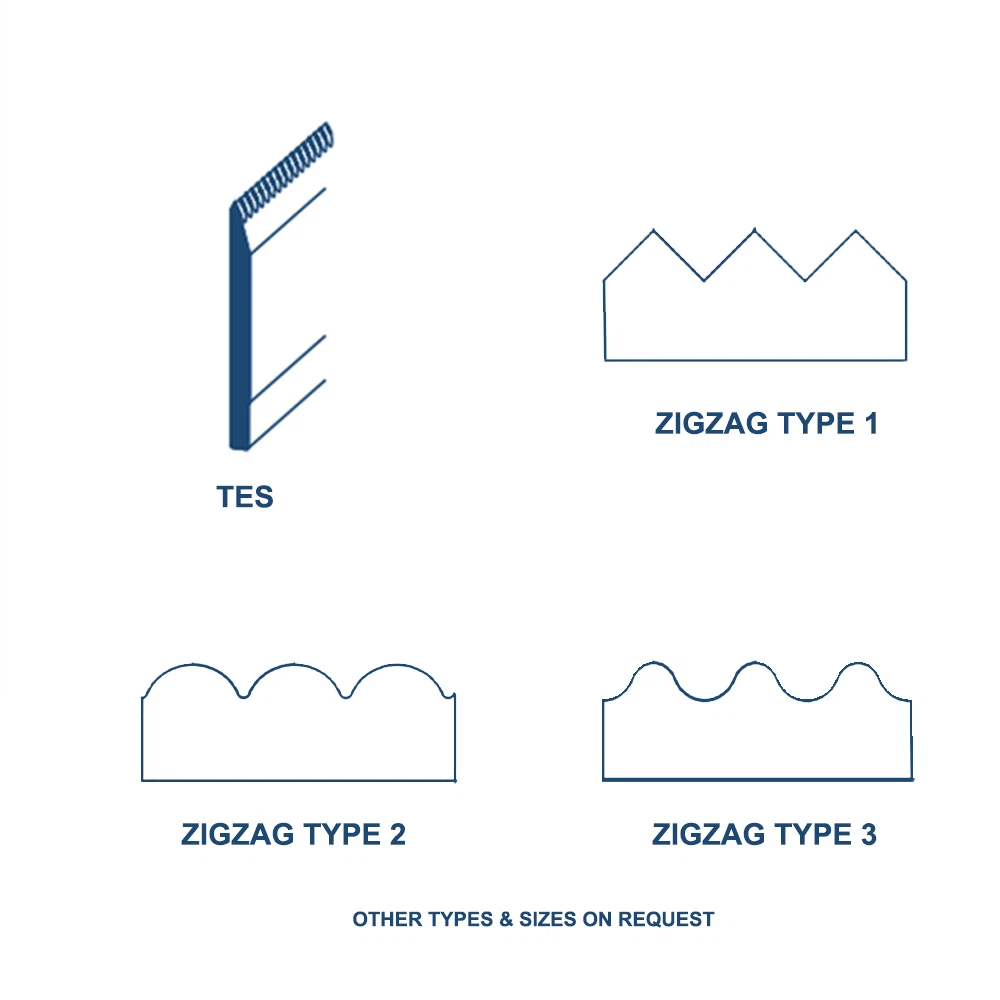

* SERIES: TES, ZIGZAG (TYPE 1, TYPE 2, TYPE3)

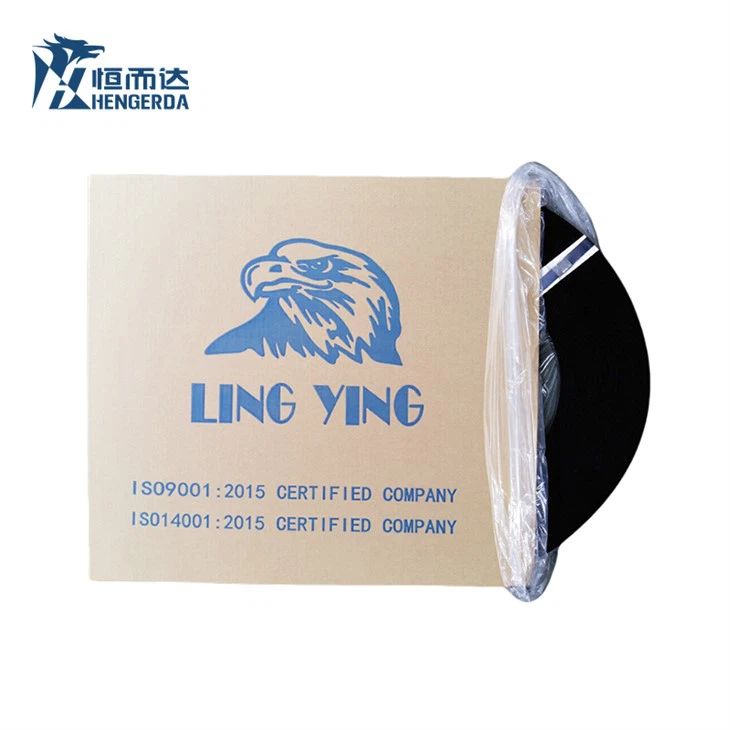

* SELF-OWNED BRANDS: LING YING, HAI SHARK
Size Available:
TES: 19*2.0, 19*2.5, 32*2.0, 32*2.5
ZIGZAG (TYPE 1, 2, 3): 19 / 32 / 36 * 2.0 / 2.5, tooth pitches available for selection
| Rule Die Steel TES Type | |||||||
| Thickness(mm) | 2.0 | 2.3 | 2.5 | 2.7 | 3.0 | 3.5 | 4.0 |
| Height (mm) | 19/32 | - | 19/32 | - | - | - | - |
| Tooth Pitch | 2 (others on request ) | ||||||
| Applications | Rubber, polyester fiber, elastic materials. etc. | ||||||
| Bevel Type | Specification (mm) | Tooth Pitch (mm) | Applications |
| Type 1 | 19 x 2.0 / 2.5 32 x 2.0 / 2.5 36 x 2.0 / 2.5 |
1/3, A=3 1/4, A=4 1/5, A=5 1/6, A=6 1/8, A=8 1/10, A=10 |
Leather lacework, tassels, etc. |
| Type 2 | 19 x 2.0 / 2.5 32 x 2.0 / 2.5 36 x 2.0 / 2.5 |
2/3, A=3 2/4, A=4 2/5, A=5 2/6, A=6 2/8, A=8 2/10, A=10 |
Leather lacework, tassels, etc. |
| Type 3 | 19 x 2.0 / 2.5 32 x 2.0 / 2.5 36 x 2.0 / 2.5 |
2/3, A-3 2/4, A=4 2/5, A=5 2/6, A=6 2/8, A=8 2/10, A=10 |
Leather lacework, tassels, etc. |
 |
 |
