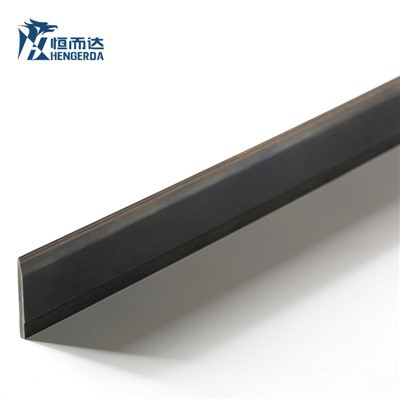

Rotary special rules are steel cutting rule extensions to rotary types that are bent into rotary steel rule dies for die-cutting in printing and packaging industries typically. Hengerda has been devoting itself to innovation and sincere services. With more than 25 years efforts in special rotary cutting rules industries, the company is able to develop a wider range of die-cutting rules, such as special curved cutting rules. Hengerda now has LING YING brand for special rotary cutting rule series. We can customize special rotary cutting rules solutions according to your needs.
Product Parameter:
| KT | KA | KE | |
| Bevel finish |
side face, pointed teeth, angular gullets |
sharp pointed teeth, round gullets |
side face, round teeth, round gullets |
| Thickness | 2pt / 3pt / 4pt 0.71 / 1.05 / 1.42 mm |
||
| Height | 22 mm - 100 mm 0.866'' - 3.937'' |
||
| Back execution |
CN (SNN, SN on request) straight no notches (SNN), straight with notches (SN), curved with notches (CN) |
||
| Tooth number | 8 / 10 / 12 T / inch | ||
|
* One side ground for above products * Other dimensions on request |
|||
| TR | AR | ER | |
| Bevel finish | pointed teeth, angular gullets |
sharp pointed teeth, round gullets |
round teeth, round gullets |
| Thickness | 2pt / 3pt / 4pt 0.71 / 1.05 / 1.42 mm |
||
| Height | 22 mm - 100 mm 0.866'' - 3.937'' |
22 mm - 50 mm 0.866'' - 1.969'' |
22 mm - 100 mm 0.866'' - 3.937'' |
| Back execution |
CN (SNN, SN on request) straight no notches (SNN), straight with notches (SN), curved with notches (CN) |
||
| Tooth number | 8 / 10 / 12 T / inch | ||
|
* One side ground for above products * Other dimensions on request |
|||
 |
 |
|
|
 |
 |
 |
 |
Cutting Application:
Special rotary die cutting rule can be a result of fast changing packaging design. Normally, special rotary cutting rules for cylinder are used to die-cut corrugated boards in printing and packaging industries, and die-cut parts in the electronic industry as well.
Packaging & Shipment:
Package in carton box, then in pallet package
Shipment by airway express, boat shipment and railway shipment
 |
 |
