CNC Machining Centers are automated machine tools controlled by programmed commands encoded on a storage medium. These centers are typically equipped with multiple tools, enabling them to perform a variety of machining operations, such as drilling, milling, and turning within the same setup. The encoded instructions direct the machine's movements on a set of axes, usually at least three (X, Y, and Z), facilitating the creation of complex and precision parts from a range of materials, including metal, plastic, wood, and composites.
Features of CNC Machining Centers
CNC Machining Centers come packed with a host of features that optimize their functionality and efficiency.
1. Multi-Axis Capability: Most CNC Machining Centers have three axes (X, Y, Z); however, advanced machines can possess up to five axes, enhancing their ability to create intricate designs with high precision.
2. Automatic Tool Changer (ATC): This feature allows for uninterrupted operation, as the machine automatically switches between different tools stored in a magazine, reducing manual intervention and downtime.
3. High-Speed Spindles: CNC Machining Centers are equipped with high-speed spindles that can reach high RPMs (Revolutions Per Minute), allowing for faster machining times and improved surface finish.
4. Coolant Systems: These systems ensure the tools and the workpiece are kept at optimal temperatures, thereby improving tool life and dimensional accuracy of the produced parts.
5. Computerized Control System: A dedicated computer serves as the control hub of the CNC Machining Center, interpreting CAD/CAM (Computer-Aided Design/Computer-Aided Manufacturing) data and translating it into precise movement and machining operations.
6. Safety Measures: Most CNC Machining Centers are designed with safety features like emergency stop buttons, spindle and axis locks, and safety interlocks to ensure operator safety and prevent damage to the machine or workpiece.

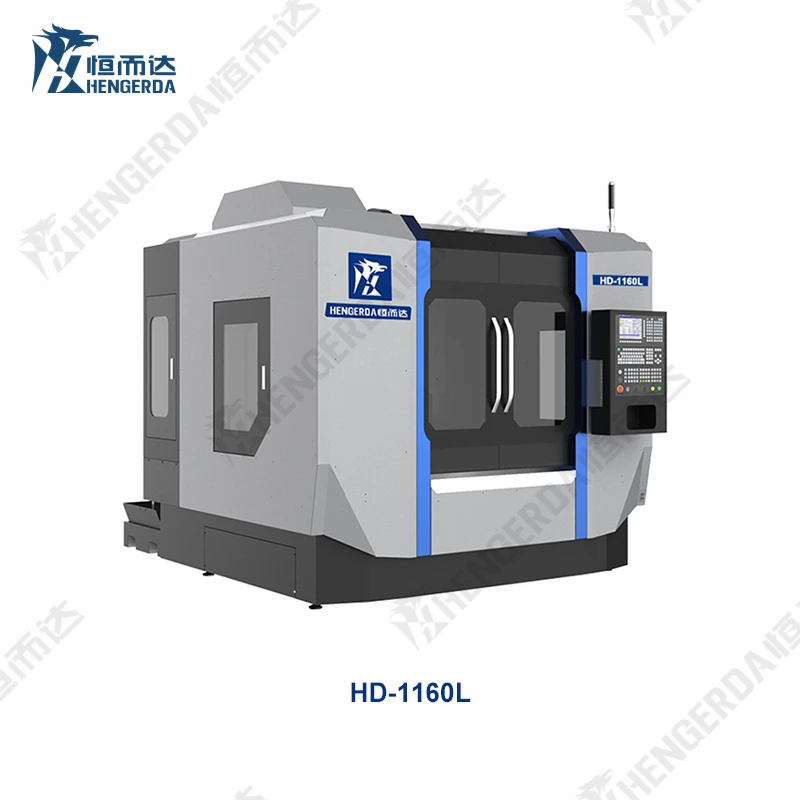

| Model | Unit | HD-1160L |
| X/Y/Z Axis Travel | mm | 1100/650/750 |
| Distance from spindle nose to table top | mm | 95-845 |
| Worktable Dimension | mm | 1200*650 |
| Tool Capacity | Pcs | 24 |
| CNC System | - | FANUC OI-MF PLUS(5)/ MITSUBISHI M80A/M80B |
| Spindle Motor | Kw | 11.0/15.0 |
| X/Y/Z axis motor | Kw | 3.0/3.0/3.0 |
 |
 |
 |
 |
