1. Machine bases with high rigidity, stability, and strength. The operation is easy, and each precision is reliable. They can process metals with various functions such as milling, drilling, boring, and tapping.
2. Widely used in processing two-dimensional and three-dimensional concave-convex models with complex shapes and surfaces. Suitable for mass productions in workshops.
3. The spindle system and every important enhanced part are all provided by well-known manufacturers in this field. Assemble the complete set of spindle at a constant temperature, have balancing corrections, and break-in tests on the computer for satisfying lifetime and reliability.
4. The three axes are equipped with C3 grade ball screws in big diameters, with couplings and servo motor connected, to provide optimal quick response and positioning accuracy.

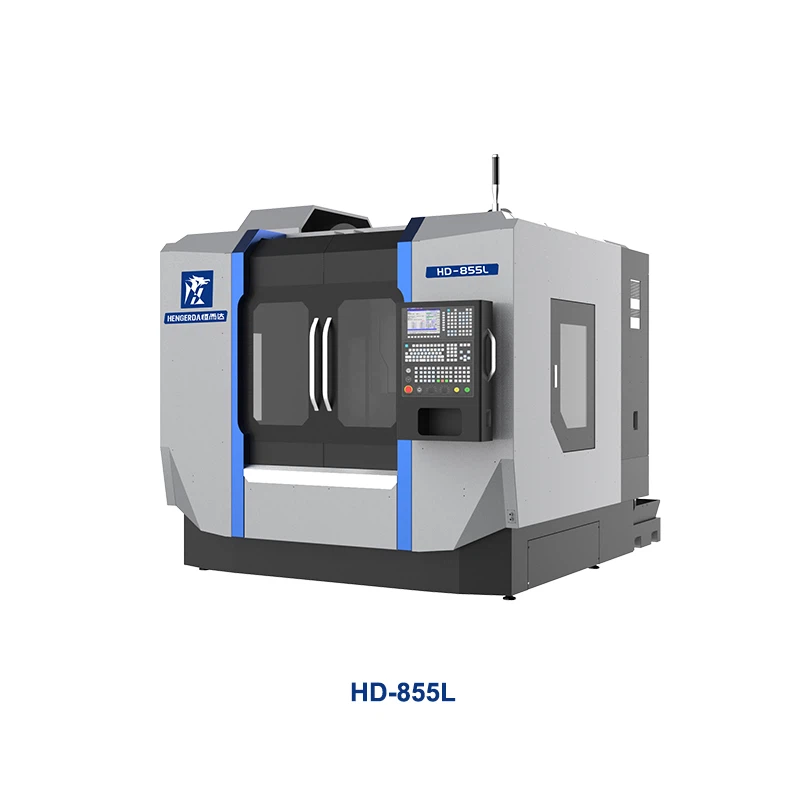

| Model NO. | HD-855L CNC Vertical Machining Centers | Numerical Control | CNC |
| Performance Classification | High-End CNC Machine Tools | Certification | CE Certification |
| Worktable Dimension(mm) | 1000*550 | Spindle Taper | Bt140-160 |
| Tool Capacity(PCS) | 24PCS | Tool Magazine | Disc Type |
| Cutting Feed Rate(mm/Min) | 0-10000 | Control System | Fanuc or Mitsubishi System |
| Trademark | HENGERDA | Other Types Machine | HD-1160L, HD-1270L, HD-1380L, HD-1580L |
| Quality Control | 100% Inspection Before Shipment | Shipment Way | By Sea, Railway, Truck |
CNC Vertical Machining Centers Parameters:
| Specifications | Unit | HD-855L | HD-1160L | HD-1270L | HD-1380L | HD-1580L |
| X/Y/Z Axis Travel | mm | 800/550/550 | 1100/650/750 | 1200/700/700 | 1300/800/800 | 1500/800/800 |
| Distance from spindle nose to table top | mm | 110-660 | 95-845 | 75-775 | 85-885 | 85-885 |
| Distance from spindle center to Z-axis guide rail | mm | 590 | 722 | 785 | 865 | 865 |
| Worktable dimension | mm | 1000*550 | 1200*650 | 1360*710 | 1500*810 | 1700*810 |
| Cutting feedrates | mm/min | 0-10000 | 0-10000 | 0-10000 | 0-10000 | 0-10000 |
| X/Y/Z axis repid feedrates | m/min | 36/36/24 | 36/36/24 | 24/24/24 | 24/24/24 | 24/24/16 |
| Tool capacity | Pcs | 24 | 24 | 24 | 24 | 24 |
| CNC System | - | FANUC OI-MF PLUS(5)/ MITSUBISHI M80A/M80B | ||||
| Spindle Motor | Kw | 7.5/11.0 | 11.0/15.0 | 15.0/18.0 | 15.0/18.0 | 18.5/22.0 |
| X/Y/Z axis motor | Kw | 2.0/2.0/3.0 | 3.0/3.0/3.0 | 3.0/3.0/3.0 | 3.0/3.0/4.5 | 4.5/4.5/4.5 |
| Please Note: all product technical information, parameters, specifications, dimensions, and design shown in this catalogue are suitable to change without prior notice. For more information, please contact Hengerda. | ||||||
CNC Vertical Machining Centers Pictures:
CNC Vertical Machining Centers Workshop
