The machine bases are known for their high rigidity, stability, and strength. The operation is easy, and each precision is reliable. They can process metals with various functions such as milling, drilling, boring, and tapping.
Widely used in processing two-dimensional and three-dimensional concave models with complex shapes, sophisticated cavities, and surfaces. Suitable for mass productions in workshops.
The spindle system and every important enhanced part are all provided by well-known manufacturers in this field. Assemble the complete set of spindle at constant temperature; have balancing corrections and break-in tests on computer for satisfying lifetime and reliability.
CNC Machining Center Parameters:
| Specifications | HD-855L | HD-1160L | HD-1270L | HD-1380L | HD-1580L | |
| Travel | ||||||
| X/Y/Z Axis Travel | mm | 800/550/550 | 1100/650/750 | 1200/700/700 | 1300/800/800 | 1500/800/800 |
| Distance from spindle nose to table top | mm | 110-660 | 95-845 | 75-775 | 85-885 | 85-885 |
| Distance from spindle center to Z-axis guide rail | mm | 590 | 722 | 785 | 865 | 865 |
| Worktable | ||||||
| Worktable dimension | mm | 1000*550 | 1200*650 | 1360*710 | 1500*810 | 1700*810 |
| T-slot(size-No.*spacing) | mm | 5-18*90 | 5-18*120 | 5-18*152.5 | 5-18*147.5 | 5-18*147.5 |
| Max. Load | kg | 500 | 800 | 1000 | 1200 | 1500 |
| Feedrates | ||||||
| Cutting feedrates | mm/min | 0-10000 | 0-10000 | 0-10000 | 0-10000 | 0-10000 |
| X/Y/Z axis repid feedrates | m/min | 36/36/24 | 36/36/24 | 24/24/24 | 24/24/24 | 24/24/16 |
| Tool Changing System | ||||||
| Tool capacity | pcs | 24 | 24 | 24 | 24 | 24 |
| Max.tool weight | kg | 8 | 8 | 18 | 18 | 18 |
| Max.tool length | mm | 300 | 300 | 400 | 400 | 400 |
| Tool diameter(with/without adjacent tools) | mm | ●78/●120 | ●78/●120 | ●112/●200 | ●112/●200 | ●112/●200 |
| Tool Magazine | - | Disc type | ||||
| Others | ||||||
| Air source | Kg/cm2 | 6 | 6 | 6 | 6 | 6 |
| Electrical power supply | KVA | 20 | 20 | 25 | 25 | 30 |
Please Note: all product technical information, parameters, specifications, dimensions, and design shown in this catalogue are suitable to change without prior notice. For more information, please contact Hengerda.

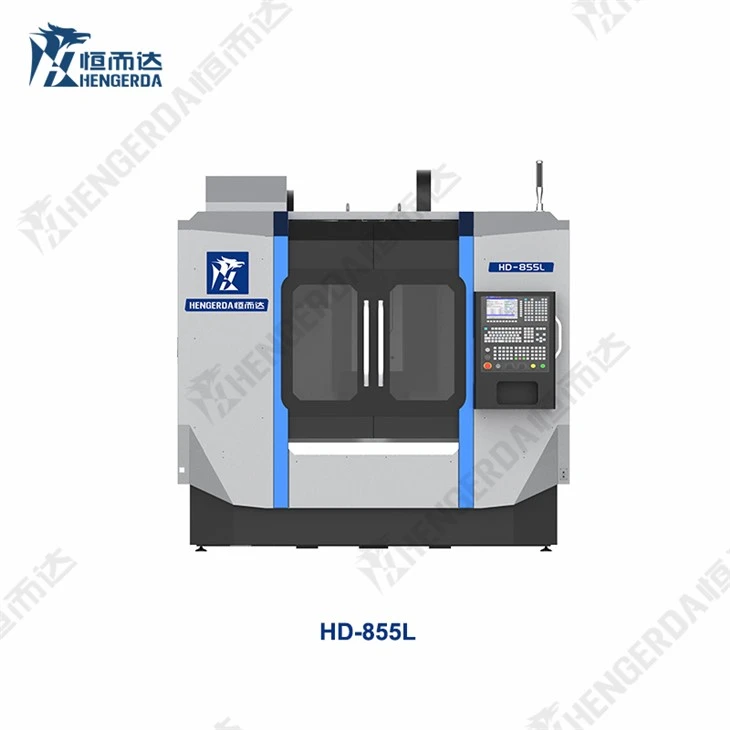

CNC Machining Centers Photo
CNC Machining Centers Workshop
